Rotary Dryer

Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Message

Chat Now

Feeding Size:
Processing Capacity: 9-285m³

Applicable materials: Yellow sand, quartz sand, iron filings, iron mud, copper filings, aluminum filings, coal, etc.

PRODUCT INTRODUCTION

The rotary drum dryer belongs to the drying and heat treatment equipment, suitable for drying magnetic, heavy, and floating concentrates of metal and non-metal ores, clay in the cement industry, and coal slurry in the coal mining industry with certain humidity or particle size. It has the advantages of simple structure, convenient operation, and strong adaptability, and is a widely used drying machinery.

Scope of application: Mineral processing, building materials, metallurgy, cement, chemical industry, etc.
Internal Structure:

Advantages

1、Wide applicability: Strong adaptability to materials, suitable for energy-saving drying of various powder, granular, strip, and block materials. It can not only quickly remove moisture from materials, but also has simple and reliable equipment operation.
2、Strong drying ability: Adopting a new type of multi combination lifting device, it has multiple functions such as guidance, uniform flow, and lifting, which can effectively overcome the "wind tunnel" phenomenon of traditional dryers, allowing materials to fully contact the hot air flow, and the drying heat transfer process is strong and efficient.
3、Excellent material selection: The cylinder body is made of steel material, which has high hardness, toughness, and is more wear-resistant; The transmission of large and small gears adopts pin column replaceable gears, with low investment cost. There are multiple lubrication methods for the supporting wheels, effectively extending the service life.
4、Less dust leakage: Good sealing performance, complete dust removal device, effectively reducing dust leakage; Reasonable operating parameters, effective utilization of thermal energy, reduction of coal and electricity consumption, and improvement of production capacity.
5、Large heat exchange area: The cylinder is equipped with lifting plates and guide plates with different angles and spacing, which can ensure that the dried material moves along the spiral direction under the action of gravity, maintaining sufficient residence time and sufficient dispersion inside the cylinder.

WORKING PRINCIPLE

Using a self combustion device to generate heat, the wet material is fed into one end of the dryer and undergoes sufficient heat exchange with the hot air flow from the combustion chamber under the flipping of the inclined spiral plate. It then moves to the discharge valve at the other end of the dryer to discharge the finished product, thus completing the drying operation.

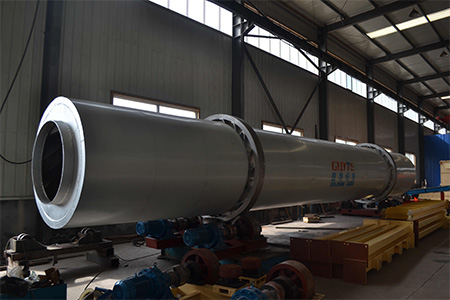

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Specification (diameter*length)	Cylinder volume (m³)	Production capacity (t/h)	Installation slope (%)	Maximum intake temperature (℃)	Main motor (kw)	Total weight (t)
Φ1.2*8	9	1.9-2.4	3-5	700-800	7.5	9
Φ1.2*10	11.3	2.4-3.0	3-5	700-800	7.5	11
Φ1.5*12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ1.5*14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5*15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8*12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8*14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2*12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2*14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2*16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4*14	63.1	13.5-16.9	3-5	700-800	37	45
Φ2.4*18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4*20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4*22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6*24	127.4	27.2-34.0	3-5	700-800	55	73
Φ3.0*20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0*25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2*25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6*28	285	60.8-76.0	3-5	700-800	160	135
