FLG Series High Weir Classifier

Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Message

Chat Now

Feeding Size: 300-3000mm
Processing Capacity: ≤23300t/h

Applicable materials: High weir classifiers are suitable for grading, desliming and dehydration operations in the grinding circuit of gold ore, iron ore, copper ore and other materials.

PRODUCT INTRODUCTION

The high weir classifier is a common equipment in the grinding cycle. It is usually combined with a ball mill to divert ore in a closed circuit, or it is used to classify the size of the pulp in the metal beneficiation process，it is suitable for coarse-grained classification, and has the advantages of stable operation and adjustable classification granularity.

Scope of application: High weir classifiers are widely used in mineral sorting links in various fields such as metallurgy, mineral processing, and chemical industry.
Internal Structure: It is mainly composed of grooves, spirals, deceleration and transmission devices, enhanced devices, ore exhaust valves and other components.

Advantages

1、Controllable granularity: By adjusting the height of the weir (the height of the liquid level of the ore slurry), the particle size of the classification can be adjusted to effectively prevent excessively large particles and sieve residues in the product.
2、High output and low consumption: Frequency conversion control technology, high degree of automation, under the same processing capacity, the energy consumption is 50% lower than other classification equipment, and the output is 50% higher under the same energy consumption.
3、Low maintenance rate: Cancel the configuration of the big spoon head of the ball mill, reduce the maintenance rate and slow down the unbalanced impact on the large and small gears of the ball mill.
4、High quality parts: The base of the machine is made of channel steel, and the body is welded with steel plates, which is wear-resistant and durable, and can be configured with a special hierarchical structure according to different special requirements.

WORKING PRINCIPLE

Based on the principle that the solid particles have different sizes and specific gravity, so the sedimentation speed in the liquid is different, do grading work.

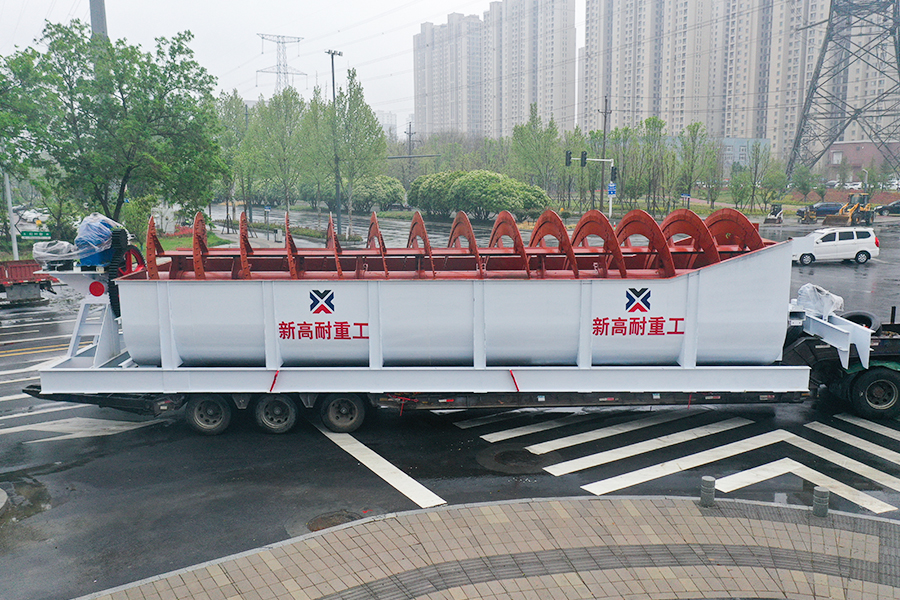

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Spiral speed (r/min)	Return sand volume (t/d)	Overflow handling capacity (t/d)	Spiral diameter (mm)	Spiral length (mm)	Slope of sink	Drive motor model	Power (kw)	Lifting motor model	Power (kw)	Weight (kg)
FLG-300	7.7	30-80	10-30	Φ300	3900	14-18	Y100L1-4	2.2	manual	-	668
FLG-500	8	145-260	21-75	Φ500	4390		Y112M-6	2.2	manual	-	1600
FLG-750	7.8	100-455	31-165	Φ750	5500		Y132S-6	3	manual	-	2716
FLG-1000	6.7	473-1026	85	Φ1000	6556		Y132M2-6	5.5	manual	-	4000
FLG-1200	5,6,7	1145-1600	150	Φ1200	6500		Y132M2-6	5.5	Y90L-4	1.5	7943
FLG-1500	2.5,4,6	1140-2730	235	Φ1500	8265		Y160M-6	7.5	Y100L1-4	2.2	11827
FLG-2000	3.6,5.5	3240-5940	400	Φ2000	8700		Y160L-6/4	11,15	Y100L2-4	3	20814
FLG-2400	3.6	6800	580	Φ2400	9130		Y200L2-6	22	Y112M-4	4	24194
FLG-3000	3.2	11625	890	Φ3000	12500		Y200L-4	30	Y112M-4	4	42188

Model	Spiral speed (r/min)	Return sand volume (t/d)	Overflow handling capacity (t/d)	Spiral diameter (mm)	Spiral length (mm)	Slope of sink	Drive motor model	Power (kw)	Lifting motor model	Power (kw)	Weight (kg)
2FLG-1200	5,6,7	2290-3200	310	Φ1200	6500	14-18	Y132M2-6	5.5*2	Y90L1-4	1.5*2	15840
2FLG-1500	2.5,4,6	2240-5360	460	Φ1500	8230		Y160M-6	7.5*2	Y100L1-4	2.2*2	22903
2FLG-2000	3.6,5.5	6400-10800	750	Φ2000	8400		Y160L-4	15*2	Y100L2-4	3.0*2	34621
2FLG-2400	3.63	13600	1160	Φ2400	9130		Y200L2-6	22*2	Y112M-4	4*2	42460
2FLG-3000	3.2	23300	1785	Φ3000	12500		Y200L-4	30*2	Y112M-4	4*2	73030
