XS Series Wheel Bucket Sand Washing Machine

Feeding Size: ≤20mm
Processing Capacity: 20-180t/h

Applicable materials: The wheel bucket sand washing machine is suitable for washing, grading and impurity removal operations of various materials such as limestone and granite.

PRODUCT INTRODUCTION

The bucket wheel sand washing machine developed by our group, combined with the actual situation of the sand and gravel industry and long-term experience, can be widely used in the washing, grading, and impurity removal of materials，it can effectively improve the quality of the finished sand, and is the preferred equipment in the wet processing process of artificial sand making.

Scope of application: Wheel bucket sand washing machines are often used in conjunction with sand making machines and are widely used in wet sand making processes in mining, building materials, water conservancy and hydropower, concrete mixing stations and other fields.
Internal Structure: It is mainly composed of trough, motor, impeller, reducer, shaft, sand washing pool, feeding port, sand outlet and other parts.

Advantages

1、Durable and stable: The structure is simple, the impeller drive bearing device is isolated from water and water-receiving materials to avoid the bearing damage caused by water, sand and pollutants, greatly reducing the failure rate;
2、High cleanliness: The gradation of the washed construction sand is reasonable, and the fineness modulus is up to standard, which can meet the requirements of high-grade materials，and the loss of spun yarn and stone powder is less during the sand washing process.
3、Efficient and environmentally friendly: Efficient cleaning, grading, and impurity removal, with high cleanliness and large processing capacity; Water washing process with low dust pollution.

WORKING PRINCIPLE

Sandstone enters the sand washing pond from the feed groove, The motor drives the leaf rotation slowly circularly periodic rotation through the belt drive reducer, driven by the impeller, the material particles are rolling and grinding each other, the soil and impurities attached to the surface were washed away from the overflow plate, the cleaning material is driven by the impeller, after the rise, it is unloaded and entered into the material tank to complete the cleaning.

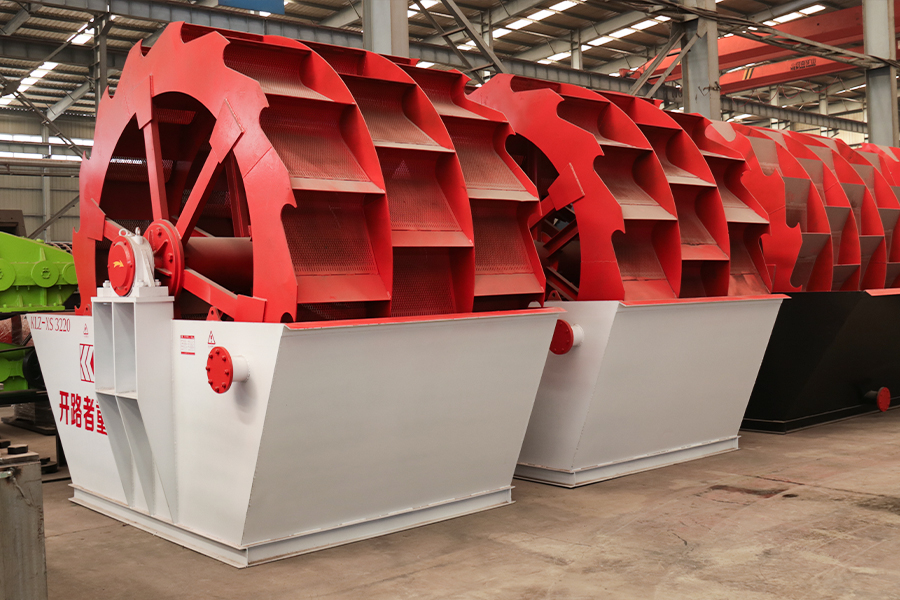

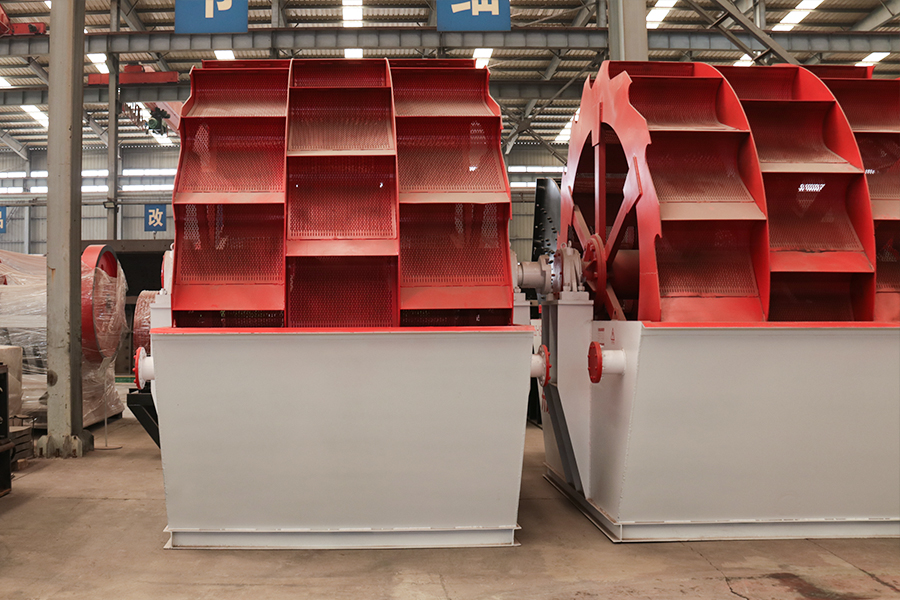

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Impeller (outside diameter*width) (mm)	Impeller speed (r/min)	Max Feed Size (mm)	Capacity (tph)	Motor power (kw)	Dimensions (mm)
XGN-XS2610	2600*1000	1.178	≤10	20-50	5.5	325519822690
XGN-XS2816	2800*1600	1.177	≤10	30-60	11	354030002880
XGN-XS3016	3000*1600	1.179	≤10	50-120	15	384530003080
XGN-XS3220	3200*2000	1.18	≤10	70-160	15	410035603300
XGN-XS3230	3200*3000	1.18	≤10	180-220	18.5	410035603300
XGN-XS3620	3600*2000	1.18	≤10	100-180	18.5	460035603700
