500 tph limestone crushing production line

In the sand and gravel production industry, the 500-ton production line has become the first choice of many sand and gravel plant owners for its high efficiency, stability and environmental protection. Limestone is a relatively low-hardness ore, which is an easily crushed ore among ores. Therefore, the equipment and models selected for crushing limestone are relatively simple. New Gaonai Heavy Industry will provide you with a comprehensive reference from configuration requirements, equipment introduction to practical application.

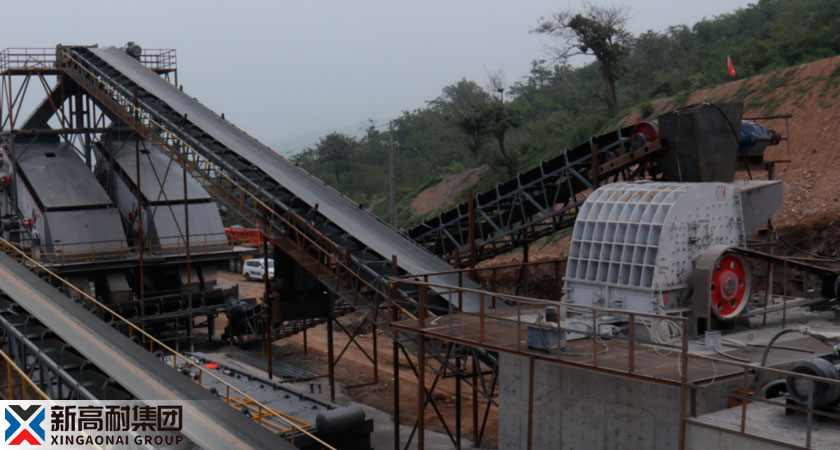

1. Introduction to the 500tph project

The raw material of this production line is limestone, which is designed by us according to the terrain, needs and characteristics of the limestone raw materials in the customer's area. Since the stone processing plant is expected to have a production capacity of 500 tons/hour, New Gaonai Heavy Industry has configured heavy hammer crushers and impact crushers for it, because in a soft rock crushing production line with an output of less than 600 tons per hour, a single machine can complete crushing and shaping. It can effectively save investment costs for users.

2. 500tph equipment configuration

Processing material: limestone
Output: 500 tons/hour
Feed particle size: 0-780mm
Discharge particle size: 0-5mm, 5-10mm, 10-20mm, 20-30mm

Equipment configuration: ZGCX1250 vibrating feeder, XGN-Z1513 hammer crusher, PF1320 impact crusher, YKZ2460 vibrating screen

3. Production process of 500tph

Large stones are fed into the XGN-Z1513 hammer crusher for coarse crushing through the ZGCX1250 vibrating feeder.

After crushing, unqualified materials are transported by belt conveyor to the PF1320 impact crusher for secondary crushing.

Then, two YKZ2460 vibrating screens screen out stones that meet the particle size requirements, and those that do not meet the requirements are sent to the PF1320 impact crusher for re-crushing. The final finished product particle size is 0-5mm, 5-10mm, 10-20mm, 20-30mm.

4. Advantages of 500tph production line

The raw material of this production line is limestone, and the production capacity reaches 500 tons/hour. It adopts a fully enclosed design and negative pressure state, which effectively controls dust and noise and meets environmental protection requirements. This production line plays an important role in the construction industry with its high efficiency and environmental protection characteristics. By rationally configuring equipment and optimizing production processes, it not only meets the demand for an annual output of 2 million tons, but also reduces the cost by nearly 30 yuan/ton compared to the market price, greatly reducing production costs and creating more profits for the company. If you want to know about the equipment configuration in this regard, you can leave a message or private message at any time!
