YKQ Series Vibrating Screen

Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Message

Chat Now

Feeding Size: ≤300mm
Processing Capacity: 100-500t/h

Applicable materials: YKQ series vibrating screen, commonly known as light screen, is suitable for screening limestone, granite, basalt, non-ferrous metal ores and other materials.

PRODUCT INTRODUCTION

YKQ series vibrating screen commonly known as light sieve, it belongs to a kind of circular vibrating screen,it adopts the current international mature design concept and is suitable for various screening operations such as heavy-duty, medium-sized and fine screening, it is an ideal screening equipment for primary crushing and secondary crushing materials, and can also be used for screening finished materials.

Scope of application: YKQ series vibrating screen is a type of circular vibrating screen and is widely used in screening processes in sand and gravel aggregates, metal mines, coal, chemical industry and other fields.
Internal Structure: It is mainly composed of vibration sources, sieve, vibration reduction device and base.

Advantages

1、More stable performance: High-quality rubber composite spring support has the advantages of long service life, fast over-resonance zone, stable operation, low noise, and small impact on the foundation.
2、Adjustable amplitude: The shaker adopts external eccentric structure, the size of the excitation force can be adjusted to meet the requirements of different processing capacity.
3、Excellent quality: Branded bearings, transmission shafts, high-quality high-manganese steel woven screens, high-quality components, and longer service life.
4、Specifications can be selected: The structure of the screen machine is simple, and the screen is easy to replace. According to the needs of users, it can be installed with screens with different layers and apertures to meet the needs of users with different specifications and materials.

WORKING PRINCIPLE

With the excitement of the vibration motor (eccentric block or eccentric axis), the sieve body is performed in the direction of the torment, the processing raw materials beating on the screen of the screen,the processing raw materials of different performances of the processing raw materials of different performances are regularized to the required sieve network surface through different sieve holes, and then transported to the designated area, for the purpose of metric or discrimination, the magnitude of the vibration can be adjusted by adjusting the weight of the chucky block.

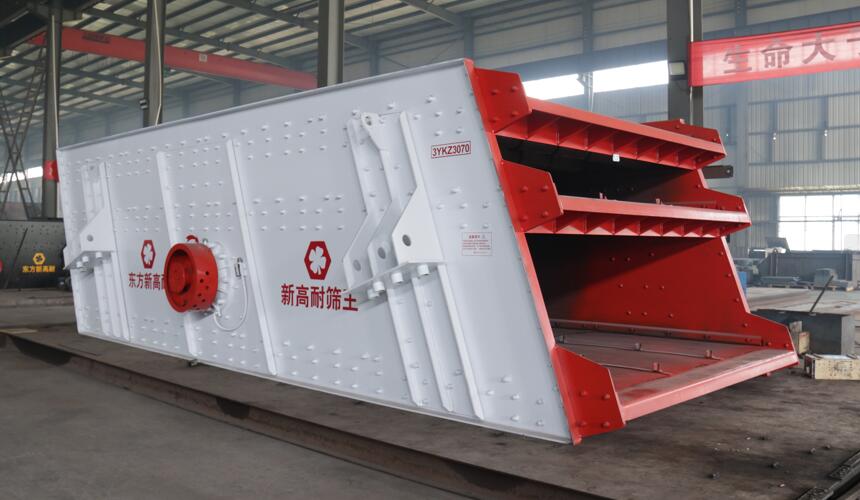

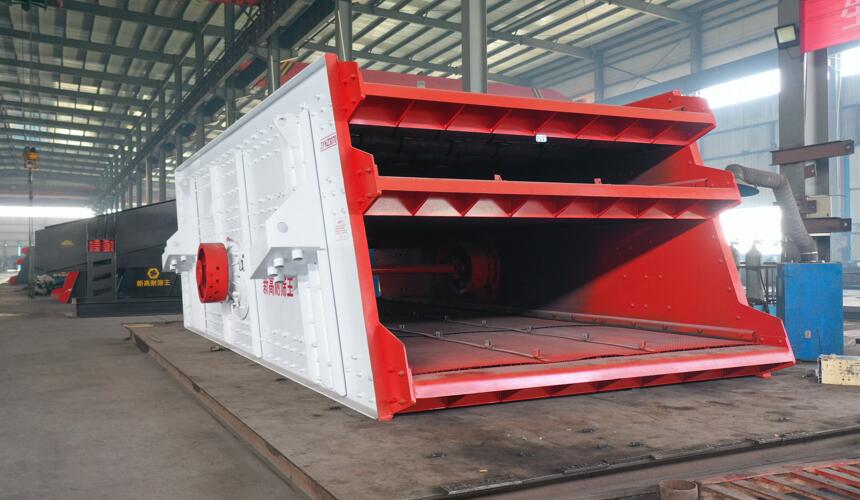

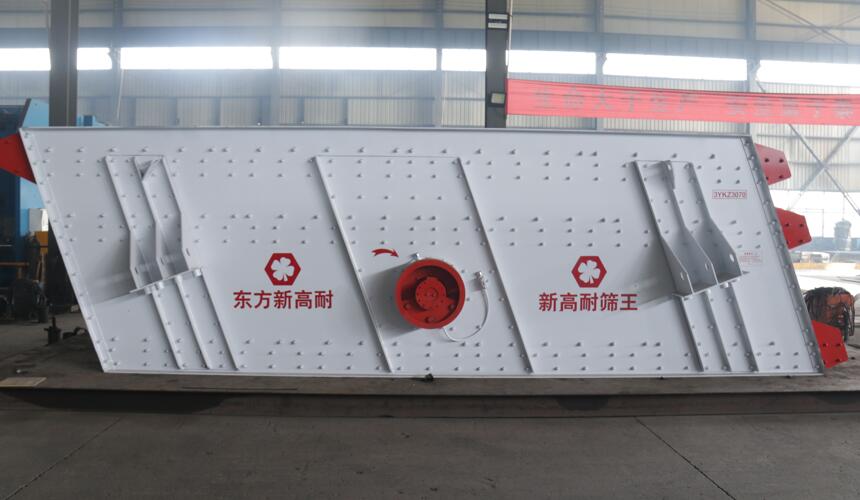

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Sieve mesh layer number	Sieve mesh surface area (㎡)	Vibration amplitude (mm)	Vibration frequency (r/min)	Motor power (kw)	Capacity (tph)
2YKQ1545	2	6.75	5-7	980	11	100-200
3YKQ1545	3	6.75	5-7	980	15	100- 200
2YKQ1860	2	10.8	5-7	980	15	160-220
3YKQ1860	3	10.8	5-7	980	22	160-200
4YKQ1860	4	10.8	5-7	980	22	160-200
2YKQ2060	2	12	5-7	980	22	150-250
3YKQ2060	3	12	5-7	980	22	150-250
4YKQ2060	4	12	5-7	980	30	150-250
2YKQ2460	2	14.4	5-7	980	22	150-280
3YKQ2460	3	14.4	5-7	980	30	150-280
4YKQ2460	4	14.4	5-7	980	37	150-280
2YKQ2470	2	16.8	5-7	980	22	240-300
3YKQ2470	3	16.8	5-7	980	37	240-300
4YKQ2470	4	16.8	5-7	980	37	240-300
2YKQ3080	2	21	5-7	980	30	400-500
3YKQ3080	3	21	5-7	980	37	400-500
4YKQ3080	4	21	5-7	980	55	400-500
