XGN-Q series light hammer crusher

Warm Tip:

If you want to know more details about equipment, solutions, etc, please click the button below for free consultation, or leave your requirements!

Message

Chat Now

Feeding Size: ≤1000mm
Processing Capacity: 50-1600t/h

Applicable materials: It is suitable for crushing brittle materials such as limestone and bluestone with crushing compressive strength ≤ 150MPA and calcium content ≥ 40

PRODUCT INTRODUCTION

The XGN-Q series light hammer crusher is an optimization of the traditional hammer break， none Rib strips design is suitable for handling low hardness and brittle materials. It is applied to many industries and is favored by mining investors.

Scope of application: Widely used in crushing operations of medium hard materials in mines, gravel fields, cement plants, construction, metallurgy and other industries.
Internal Structure: It is mainly composed of the case, rotor, spindle, hammer head, lining, etc.

Advantages

1、None Rib strips model: None Rib strips design,it effectively avoids the phenomenon that the traditional hammer crusher is easy to be blocked by materials, and it can also crush wet materials with high water content, and the production will not be stuck in rainy days.
2、Low powder yield: The design of the movable impact frame is reasonable, which can flexibly adjust the size of the output material and control the content of stone powder in the finished material to be low.
3、The hammer head is more wear-resistant: The hammer head adopts chromium-containing alloy compound casting process, which has better impact resistance and wear resistance.
4、High quality components: There are wear-resistant retaining rings on the vulnerable parts of the outer ring of the rotor, which are wear-resistant and easy to replace; the hammer plate uses Q3556 high -strength structure steel, and the hammer shaft holes are embedded with alloy steel shaft sleeves to effectively extend the service life of the rotor.

WORKING PRINCIPLE

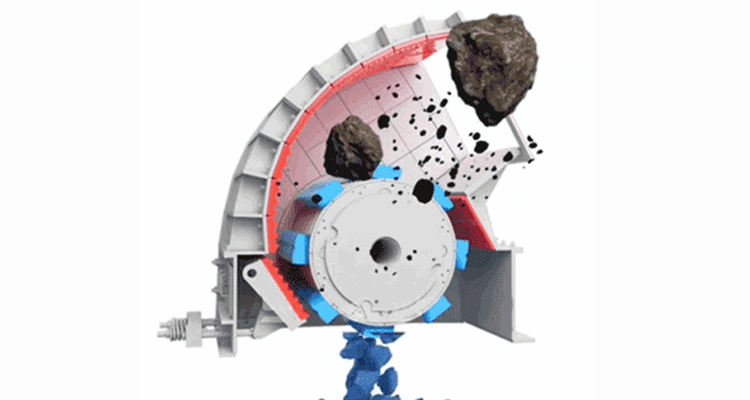

The motor drives the rotor at a high -speed rotation in the crushing cavity. The material is given to the machine from the upper part, the grain level of the sieved size of the crushing material is discharged through the sieve plate, and the thick particles greater than the size of the sieve holes are stranded on the sieve plate to continue to be hit and grinded by the hammer,finally Adjust the gap to adjust.

PRODUCT PHOTOS

TECHNICAL SPECIFICATIONS

Model	Rotor diameter*length (mm)	Feed port width*length (mm)	Feed size (mm)	Capacity (tph)	Motor power (kw)	Dimensions (mm)
XGN-Q0706	700*570	618*510	≤400	50-70	75	195013401480
XGN-Q0808	800*750	780*610	≤500	80-100	132	228017901670
XGN-Q0910	900*1000	1070*750	≤600	150-200	110*2	260022001940
XGN-Q1012	1000*1180	1255*810	≤650	250-300	132*2	280023102210
XGN-Q1213	1200*1280	1350*920	≤750	300-350	160*2	297025802510
XGN-Q1216	1200*1590	1530*920	≤750	400-500	200*2	307028402580
XGN-Q1220	1220*1950	2000*920	≤750	500-600	220*2	308033802580
XGN-Q1622	1620*2200	2200*1000	≤900	600-800	250*2	369532503450
XGN-Q1825	1840*2390	2390*1050	≤900	800-1200	800	405041003400
XGN-Q2026	2000*2490	1170*2550	≤1000	1200-1600	1000	449042603725
